List of Parts
- Arduino (I recommend the Arduino starter kit if you don't have an Arduino yet)
- Ethernet Shield Arduino (with SD card ready for logging data)
- Power Supply to power device
- Breadboard
- Resistors (for voltage Divider) - Actual values depend on voltages used. The example here scales 12 volts to 5 volts for the Arduino to read easily. Read more about voltage dividers to determine your resistor values.
- Jumper wires
- ACS715 Hall Effect Current Sensor
- A device you want to measure the power consumption of and you can power it up with a power supply
I should note that the ACS715 current sensor requires you to power the device through this sensor, so you will need the leads from your device be connected to one end of this device and the power supply to run your device connected to the other end.
Build It

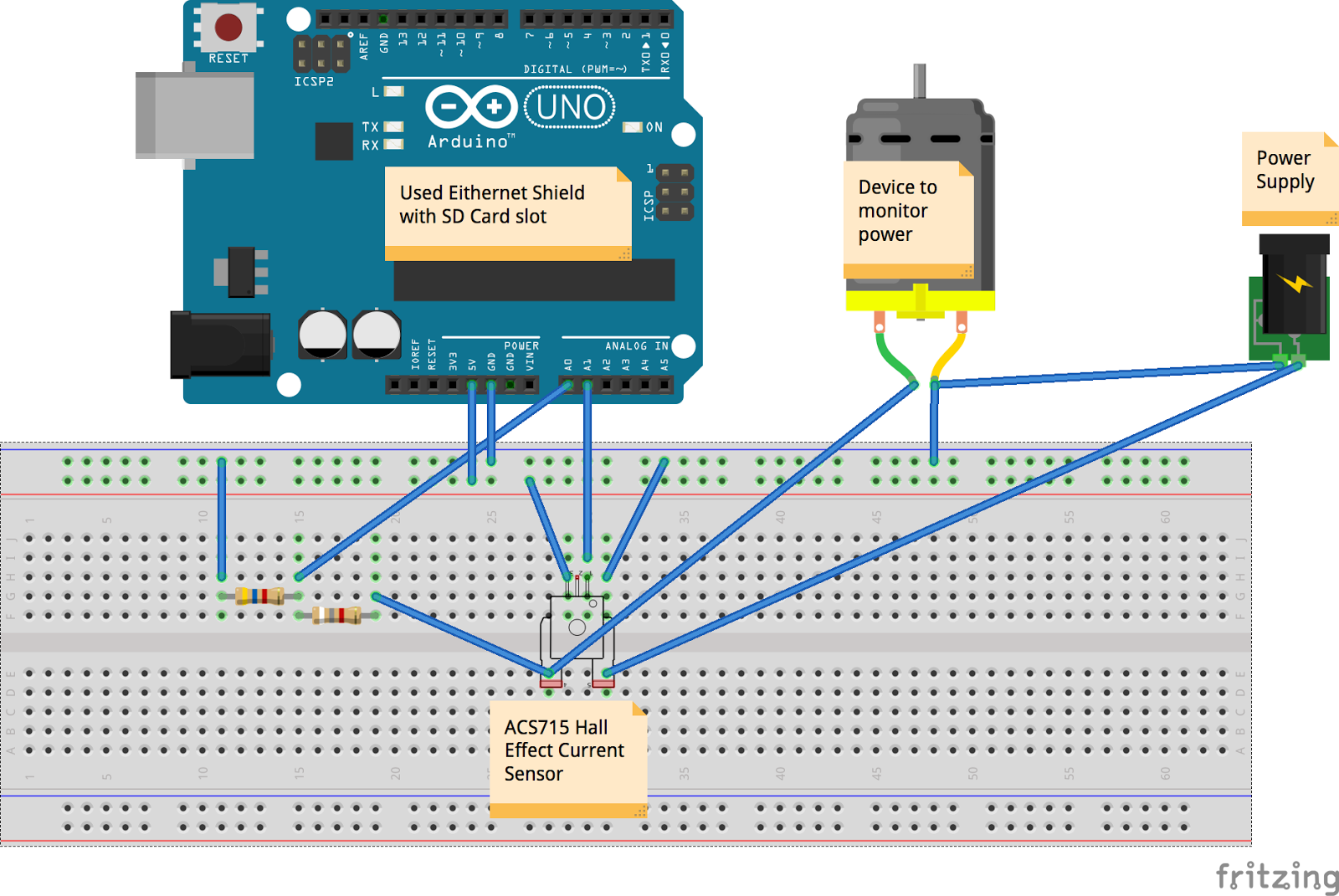

Note that the ACS715 hall sensor device has 5 connections. 3 plug into the breadboard: Gnd, Vcc, and Out. These plug into the breadboard and the Arduino respectively. The Fritzing Diagram does not show this 100% accurately since the Current sensor is not the same in the Fritzing program, but it should be easy to determine. The other two ports on the sensor run the current through your device when powered up.
Code It
The code can be broken up into 4 sections. Setup, Measuring voltage (with the voltage divider), measuring current with the ACS715 sensor, and logging the output to the SD card. The latest code for the Arduino Power Logger can be found here on Github.
Done!
I think a video goes a long way to help explain things and show the working setup. It's just on the lab bench but you should be able to get the idea of what's going on and what it is doing. If you have any questions about things, the comments are open and ready for them!
